Combwriter
Ergonomical split-typewriter with fully 3D-Printed Circuit Board.
Through its unique hexagonally shaped keycaps,
the layout naturally follows an ergonomic V shape to fit
the different lengths of the fingers.
Features
- ergonomical split-layout
- hot-swappable, CherryMX compatible switches
- thumb joysticks for both hands
- 3D-printed hexagonal keycaps

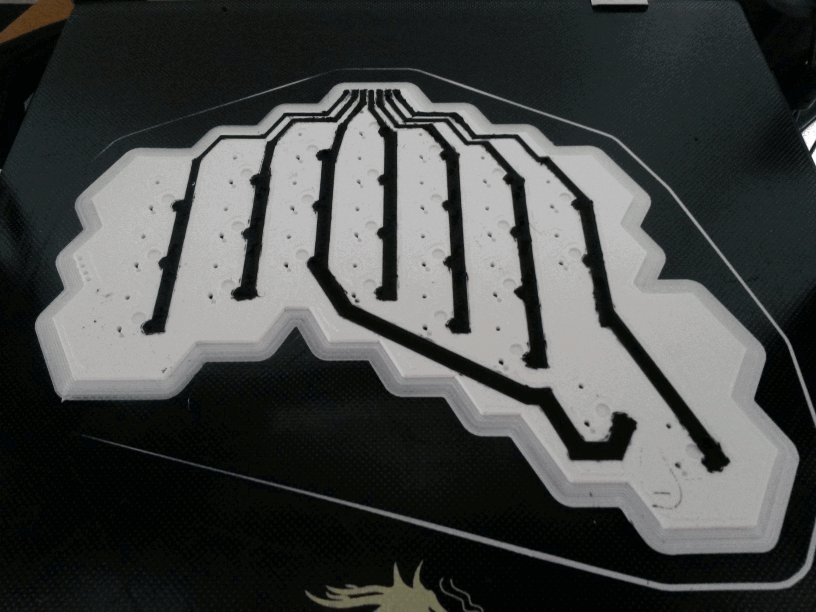

- 3D-printed base-plate, including 3D-printed circuit board
- parametrized design:
- customizable key-heights and angles (layout.scad:21)
- customizable key-symbols (layout.scad:35)
Materials
| Qty | Abstract |
|---|---|
| 50 | Diode (general purpose, axial) |
| 50 | CherryMX Compatible Switch |
| 2 | Thumb Joystick |
| 2 | 7x1 Pin-Header (2.54mm) |
| 2 | 4x1 Pin-Header (2.54mm) |
| 1 | Filament; PLA White |
| 1 | Filament; PLA Black |
| 1 | Filament; PLA Wood (optional) |
| 1 | Filament; TPU Conductive |
